    Off The Shelf Standard Filter Housings Filter Cartridge Housings for the Biopharmaceutical Industry

  • 产品型号： 7M19LEN00001 7M19LEN00040 7M19LEN00162
  • 产品规格： 7S11LEN00147 7S11LEN00091 (10“) 7S12LEN00091 (20“)
  • 生 产 商：
  • 品牌商标： 赛多利斯
  • 参考报价：
  • 产品介绍

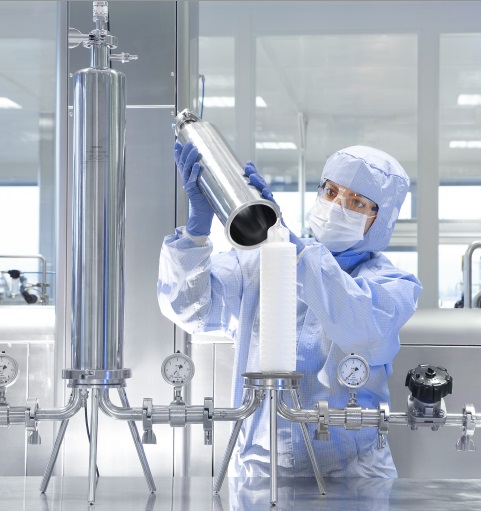

Off-The-Shelf Standard Filter Housings—Filter Cartridge Housings for the Biopharmaceutical Industry



A New Performance of Delivery

Short Delivery Time

Sartorius Stedim Biotech standard filter housings meet the highest requirements of the biopharmaceutical industry.

Controlled production engineering is a guarantee for out- standing quality in processing and operational safety.

All filter cartridge housings comply with Pressure Equipment Directive PED 2014|68|EU and design code AD2000.

Our housings are equipped with FDA | USP Class VI certified gasket materials. Meticulously processed surfaces ensure

operational safety wherever sterility and cleanability are concerned.

The following housings can be ordered directly at Sartorius from stock. In case stock is sold out, with a short lead time.



General housing data


Operation pressure

1 bar up to +10 bar

Operation temperature

-10°C up to +150°C

Surface Inner | Outer

0.5 μm | 1.6 μm (electro-polished)

Medium group

1 (dangerous)

PED

DGRL 2014|68|EU

Design-Code

AD2000

Housing material „L“

AISI 316L (1.4404 | 1.4435)

Gasket „E“ (Certificates)

EPDM (FDA|USP   Cl.VI|BSE/TSE-free|EU-1935-2004)

Documentation „N“

„N“ Standard   Documentation



货号

Housing type
Cartridge adapter
Height

Nozzle description

7M19LEN00001

Liquid Housing T-Type
15 Mini
5" (BH9)

Inlet:TC 50,5 mm – ¾’’   (19,05 mm × 1,65 mm)
  Outlet:TC 50,5 mm – ¾’’ (19,05mm × 1,65 mm)
  Venting: Pharma valve
  Inlet-outlet distance 172 mm

7M19LEN00040

Liquid Housing I-Type
15 Mini
 5’’ (BH9)

Inlet TC 50,5 mm – 1’’ (25,4   mm × 1,65 mm)
  Outlet TC 50,5 mm – 1’’ (25,4 mm × 1,65 mm)
  Venting Pharma valve  Drain Pharma   valve
  Inlet-outlet distance 289 mm

7M19LEN00162

Gas Housing T-Type
15 Mini
 5’’ (BH9)

Inlet TC 50,5 mm – ¾’’   (19,05 mm × 1,65 mm)
Outlet TC 50,5 mm – ¾’’ (19,05 mm × 1,65 mm)
 Venting Pharma valve  Drain Pharma   valve
 Inlet-outlet distance 164 mm

7S11LEN00147

Liquid Housing T-Type
25 (code 7)
10’’

Inlet TC 50,5 mm – ISO DN 25   (33,7 mm × 2,0 mm)
Outlet TC 50,5 mm–ISO DN 25 (33,7 mm × 2,0mm)
Venting Pharma valve
Drain Pharma valve
Inlet-outlet distance 243 mm

7S11LEN00091
  (10“)
  7S12LEN00091
  (20“)

Liquid Housing T-Type
25 (code 7)
10’’ and 20’’

Inlet TC 50,5 mm – OD 1’’   (25,4 mm × 1,65 mm)
  Outlet TC 50,5 mm – OD 1’’ (25,4 mm × 1,65 mm)
  Top nozzle TC 50,5mm–OD 1,5’’(38,1mm×1,65mm)
  Venting Pharma valve
  Inlet-outlet distance 217 mm

7S11LEN00839

Liquid Housing I-Type
25 (code 7)
10’’

Inlet TC 50,5 mm – OD 1,5’’   (38,1 mm × 1,65 mm)
  Outlet TC 50,5 mm – OD 1,5’’ (38,1 mm × 1,65 mm)
  Venting Pharma valve  Drain Pharma   valve
  Inlet-outlet distance 442 mm

7S11LEN00138 (10“)
  7S12LEN00138 (20“)

Gas Housing T-Type
25 (code 7)
10’’ and 20’’

Inlet TC 50,5 mm – OD 1,5’’   (38,1 mm × 1,65 mm)
  Outlet TC 50,5 mm – OD 1,5’’ (38,1 mm × 1,65 mm)
  Top nozzle TC 50,5mm–OD 1,5’’(38,1mm×1,65mm)
  Venting Pharma valve  Drain Pharma   valve
  Inlet-outlet distance 252 mm

7S11LEN00414

Vent Housing I-Type
  (pressureless)
25 (code 7)
10’’

Inlet | Outlet TC 50,5 mm –   OD 1,5’’ (38,1 mm × 1,65 mm)
  Total height 395 mm
  Venting To the atmosphere
